9.2.1 Switch and fuse descriptions

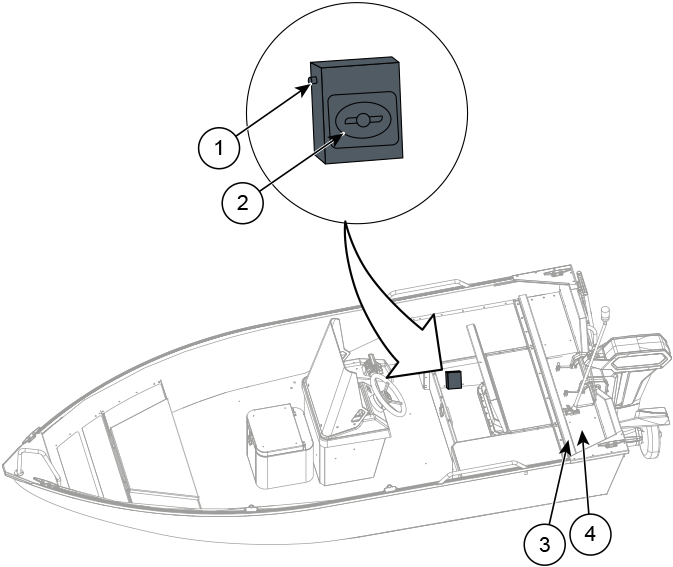

Figure 1. Buster XSr Torqeedo main switches and fuses
|
Position |
Description |
Amperage |
|---|---|---|
|
1 |
12 V system main fuse/main switch* |
15 A |
|
2 |
Drive system main switch |
|
|
3 |
12 V battery charging line fuse** |
15 A |
|
4 |
Bilge pump fuse** |
5 A |
*On/Off type fuse that functions as the 12 V system main switch
**In-line type fuse
