9.5.1 Locations of electrical equipment

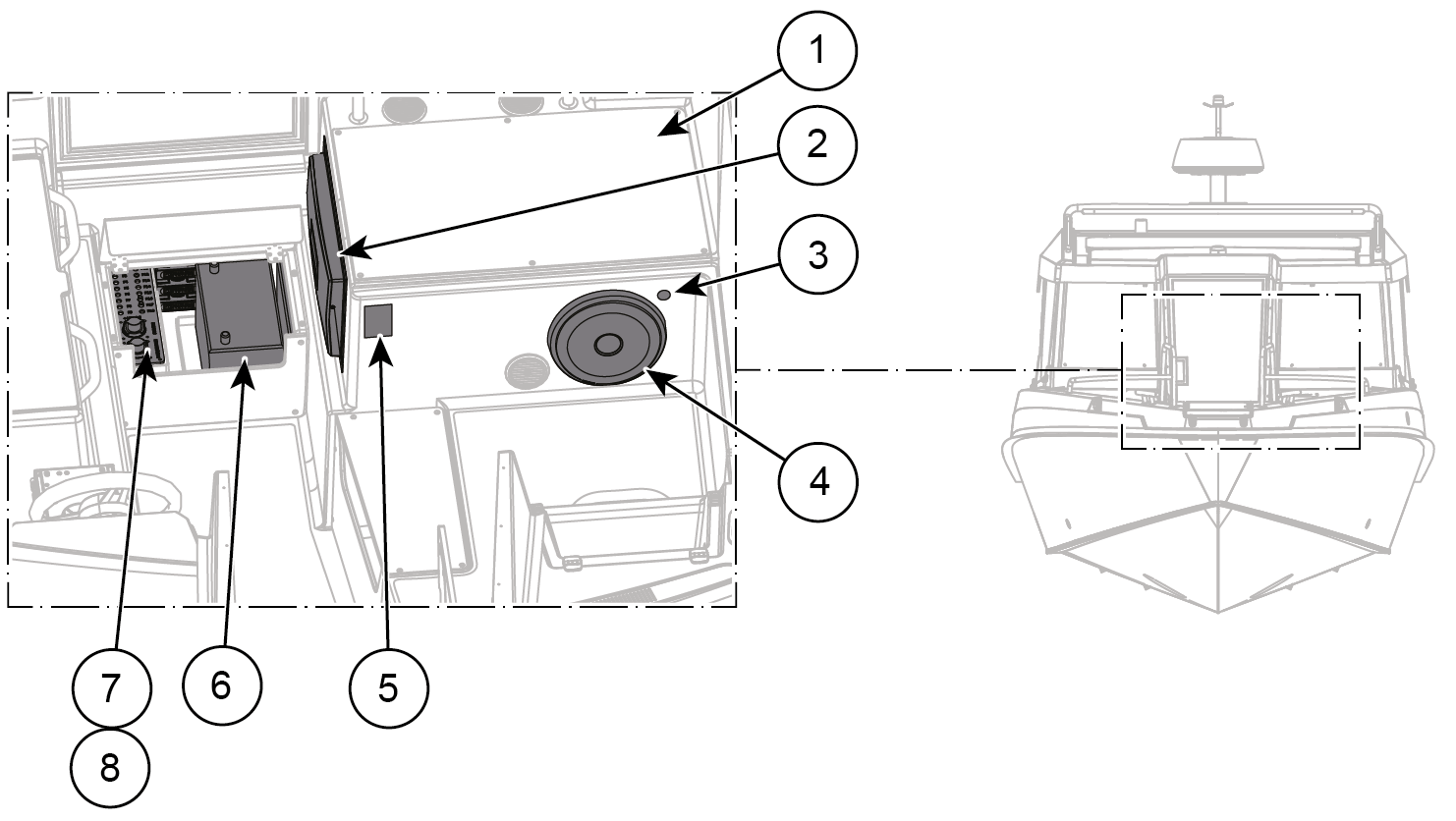

Figure 1. Cabin view
1 | Shore power RCD | 5 | 230 V socket (Schuko) |
2 | Fridge | 6 | Battery |
3 | 12 V socket | 7 | Main switch |
4 | Subwoofer | 8 | Fuse panel |
Figure 2. Side view
1 | Bilge pump | 10 | Trim tabls |
2 | Anchor winch | 11 | Cabin lights |
3 | Light mast | 12 | Loudspeakers |
4 | Search light | 13 | USB socket |
5 | Solar panel | 14 | Bow thruster |
6 | GPS antenna | 15 | Windshield wiper |
7 | Driving lights | 16 | Navigation light |
8 | Deck lights | 17 | Solar panel control panel (behind the loudspeaker) |
9 | Shore power |
