4.3.2 Measurements for antifouling paint area
The measurements indicate the upper limit of the antifouling paint, not the true waterline of the boat.

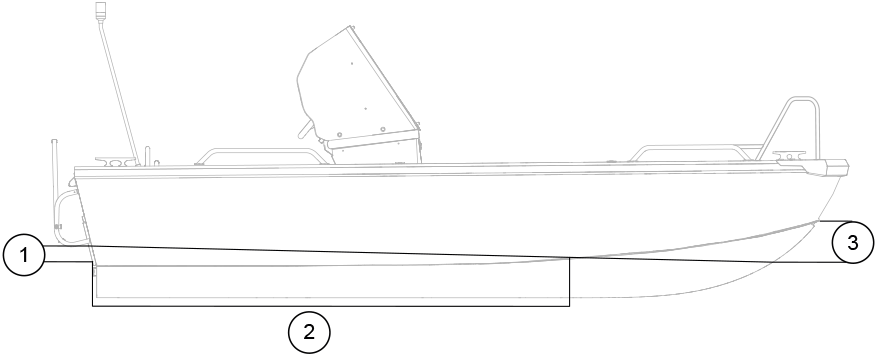

Figure 1. Buster S/S1/S2/Scc antifoulinfg paint area
| Position | Description | mm (in) |
|---|---|---|
| 1 | At stern: directly up from chine | 130 mm (5.1") |
| 2 | In chine line: from stern | 2100 mm (82.7") |
| 3 | At bow: down from chine along the bow | 600 mm (23.6") |
