10.3 Locations of draining equipment

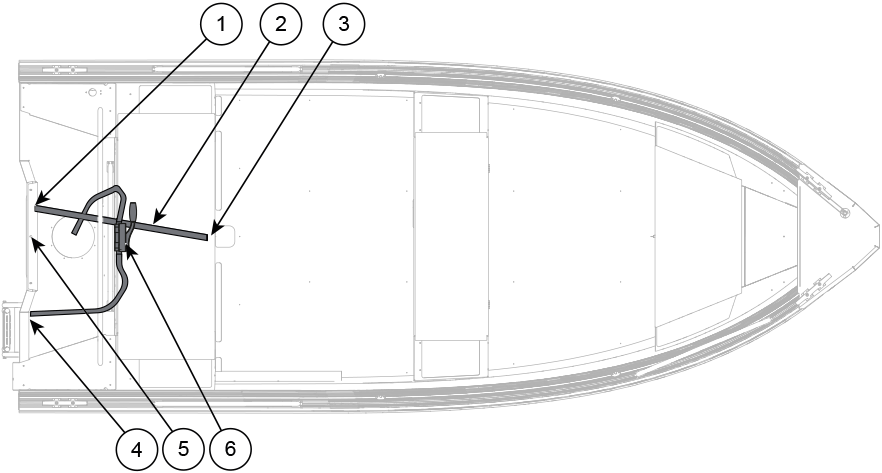

Figure 1. Buster S locations of draining equipment
1 |
Shut-off flap | 4 | Manual bilge pump through fitting |
2 |
Open deck space drainage pipe | 5 | Rear plug |
3 |
Rainwater drainage shut-off plug | 6 | Manual bilge pump |

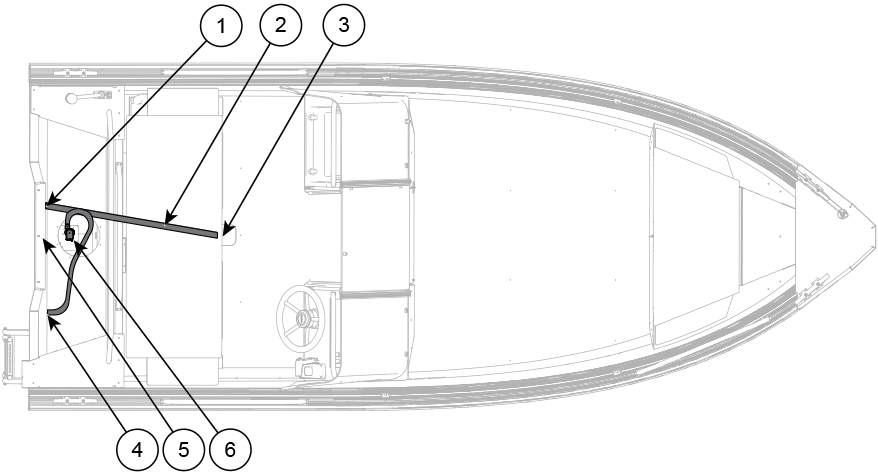

Figure 2. Buster S1/S2/Scc locations of draining equipment
1 |
Shut-off flap | 4 | Electric bilge pump through fitting |
2 |
Open deck space drainage pipe | 5 | Rear plug |
3 |
Rainwater drainage shut-off flap | 6 | Electric bilge pump and float switch |
