4.3.2 Measurements for antifouling paint area
The measurements indicate the upper limit of the antifouling paint, not the true waterline of the boat.

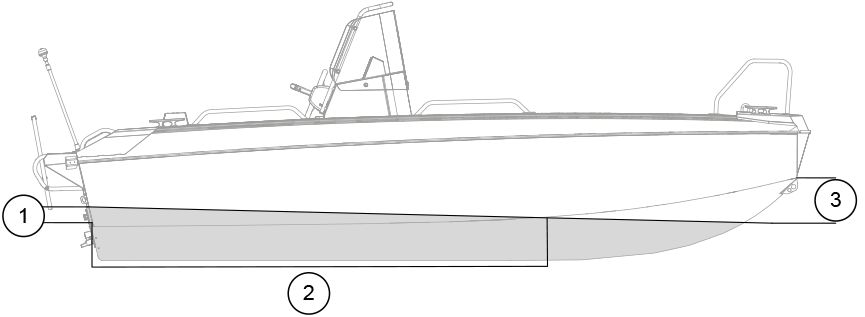

Figure 1. Buster L1/L2/Lcc antifouling paint area
| Position | Description | mm (in) |
|---|---|---|
|
1 |
At stern: directly up from chine |
70 mm (11.4") |
|
2 |
In chine line: from stern |
1800 mm (70.9") |
|
3 |
At bow: down from chine along the bow |
610 mm (24") |
