3.3.1 Safety label descriptions and locations
|
Location |
Safety label |
Description |
|---|---|---|
|
1 |
 |
Fuel inlet |
|
2 |
 |
Always attach the emergency switch cord when driving the boat. |
|
3 |
 |
Location of fire extinguisher. |
|
4 |
 |
Close the windshield door when travelling at a speed of more than 5 knots. |

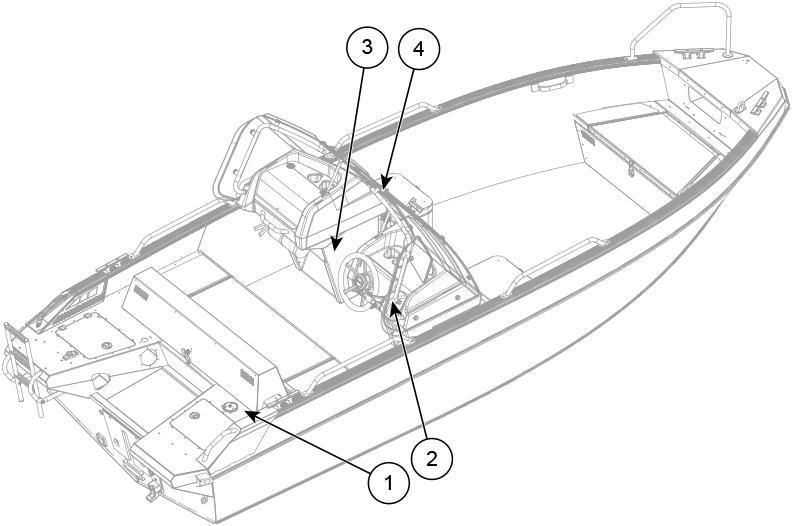

Figure 1. Buster L1/Lcc safety
labels

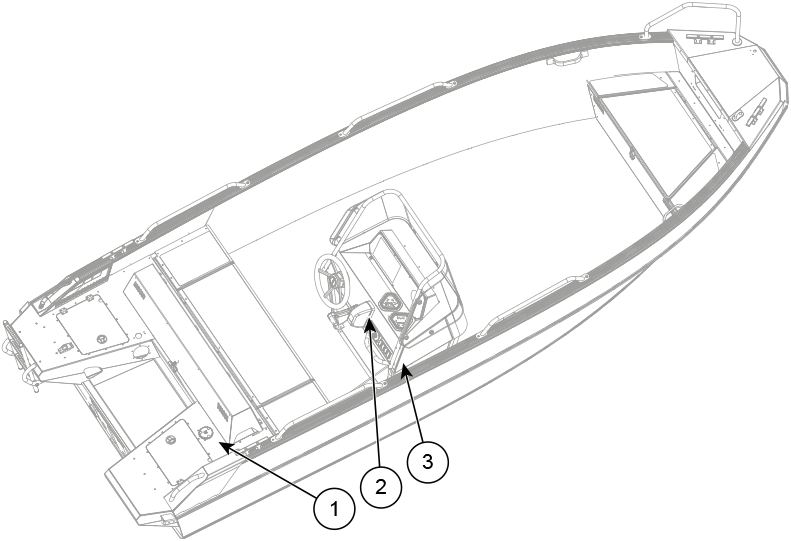

Figure 2. Buster L2 safety
labels
Label number 1 is applicable only if the boat is equipped with optional fixed fuel tank.
Label number 4 is applicable only in Buster L2.
