10.2 Locations of draining equipment

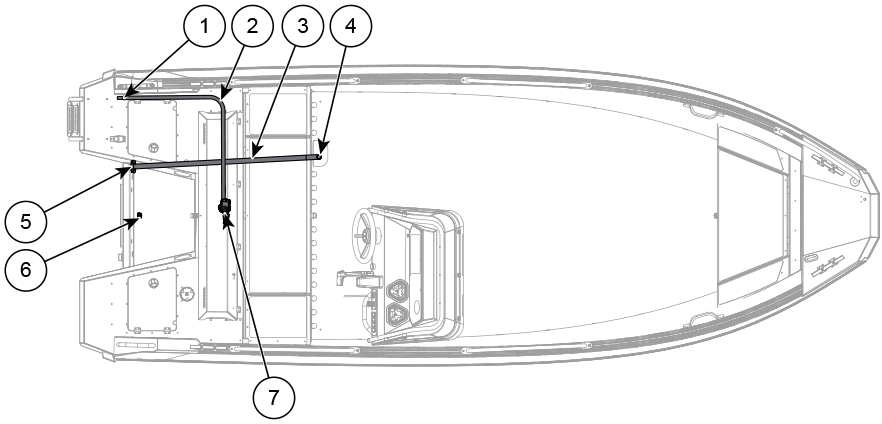

Figure 1. Buster L1/L2/Lcc locations of draining equipment
1 |
Electrical bilge pump through fitting | 5 | Shut-off flap |
2 |
Electrical bilge pump hose | 6 | Rear plug |
3 |
Open deck space drainage pipe | 7 | Electric bilge pump and float switch |
4 |
Rainwater drainage shut-off plug |
