7.1 Fuel system components

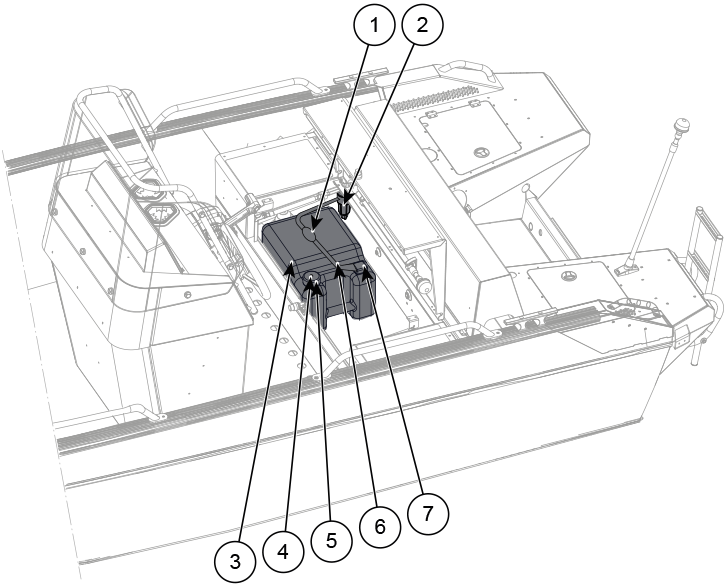

Figure 1. Buster L1/L2/Lcc fuel system
with removable fuel tank
1 |
Primer pump | 5 | Fuel tank cap |
2 |
Fuel filter | 6 | Fuel suction line |
3 |
Fuel tank | 7 | Fuel gauge and suction hose joint |
4 |
Air vent screw |

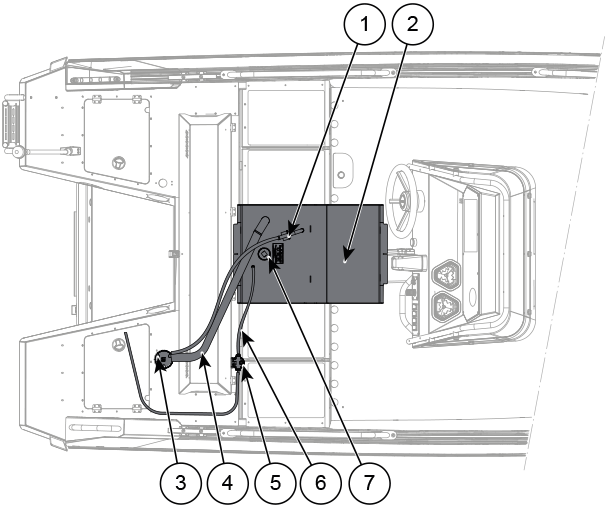

Figure 2. Buster L1/L2/Lcc fuel system
with optional fixed fuel tank
1 |
Breather hose | 5 | Fuel filter |
2 |
Fuel tank | 6 | Suction hose |
3 |
Fuel filler and breather | 7 | Fuel sensor |
4 |
Filler hose |
