6.1.1 Control device locations

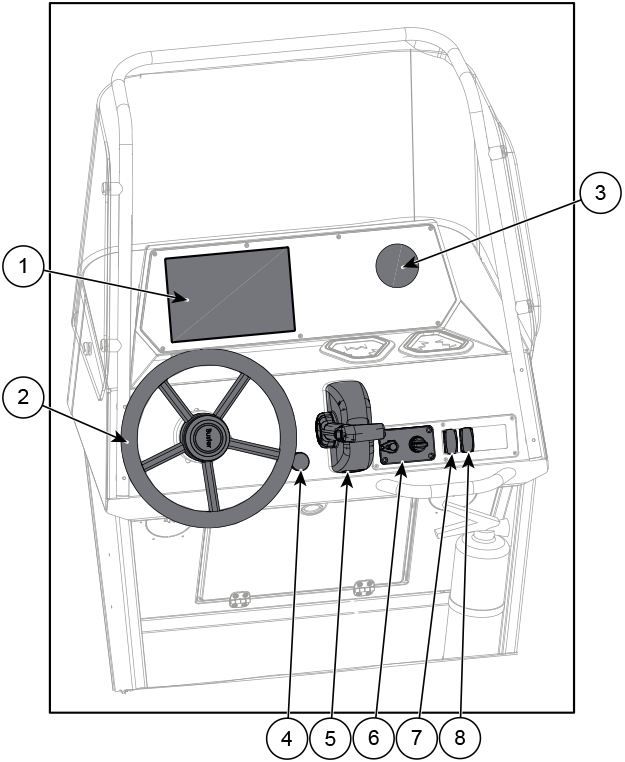

Figure 1. Buster L1/Lcc helm station
controls
1 |
Buster Q | 5 | Remote control |
2 |
Steering wheel | 6 | Power and start switch and emergency cut-off switch |
3 |
Tachometer * | 7 | Bilge pump switch |
4 |
USB socket | 8 | Navigation lights switch |
* Only available if the boat is not equipped with Buster Q

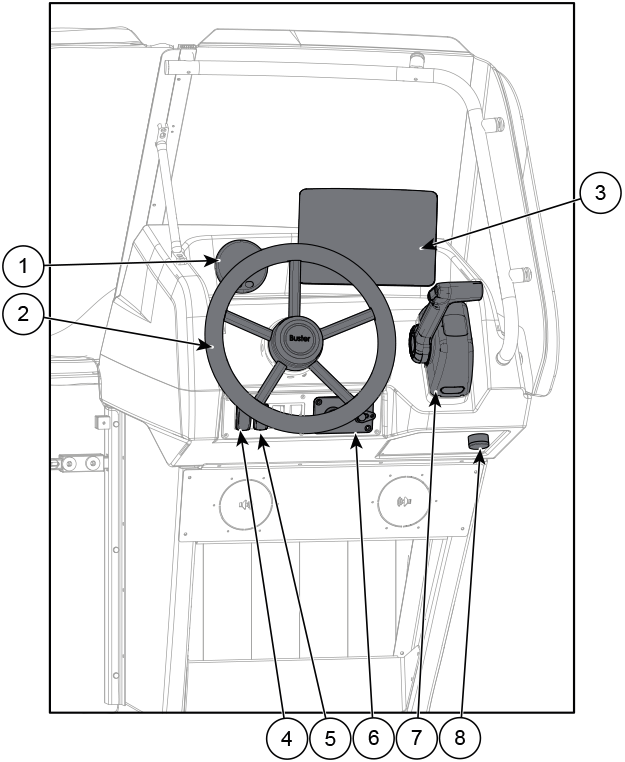

Figure 2. Buster L2 helm station
controls
1 |
Tachometer * | 5 | Bilge pump switch |
2 |
Steering wheel | 6 | Power and start switch and emergency cut-off switch |
3 |
Buster Q | 7 | Remote control |
4 |
Navigation lights switch | 8 | USB socket |
* Only available if the boat is not equipped with Buster Q
