9.2.2 Fuse panel locations

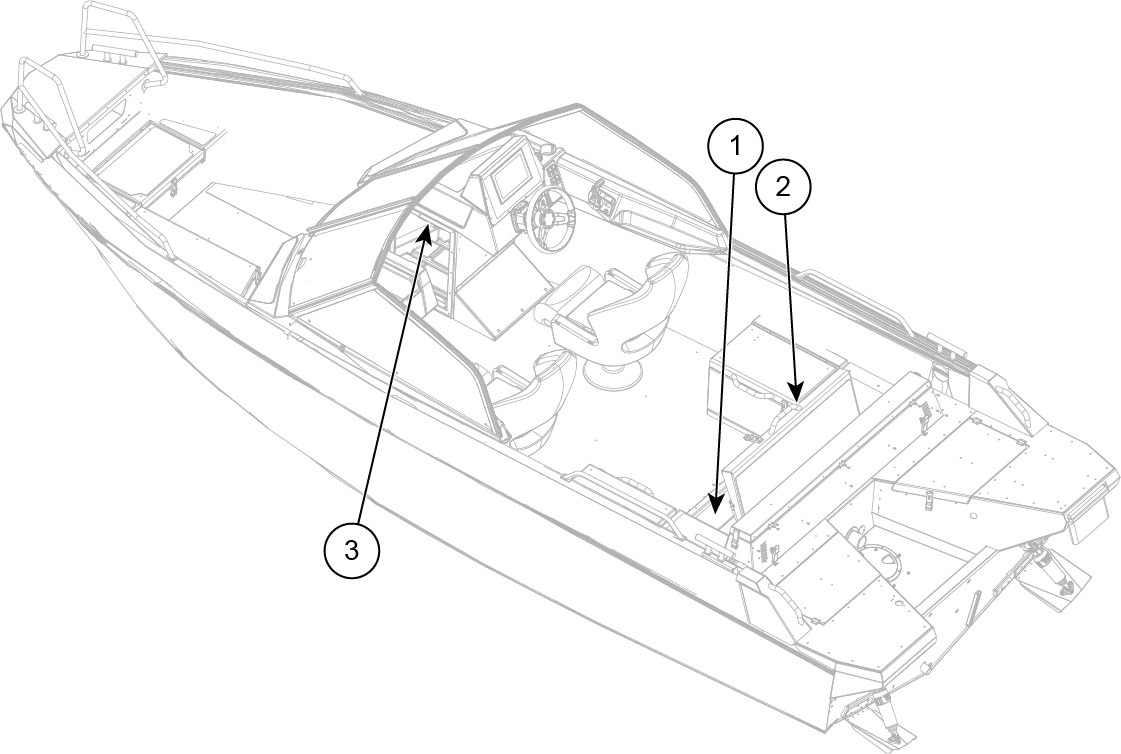

Figure 1. Buster XL/XXL fuse panel locations

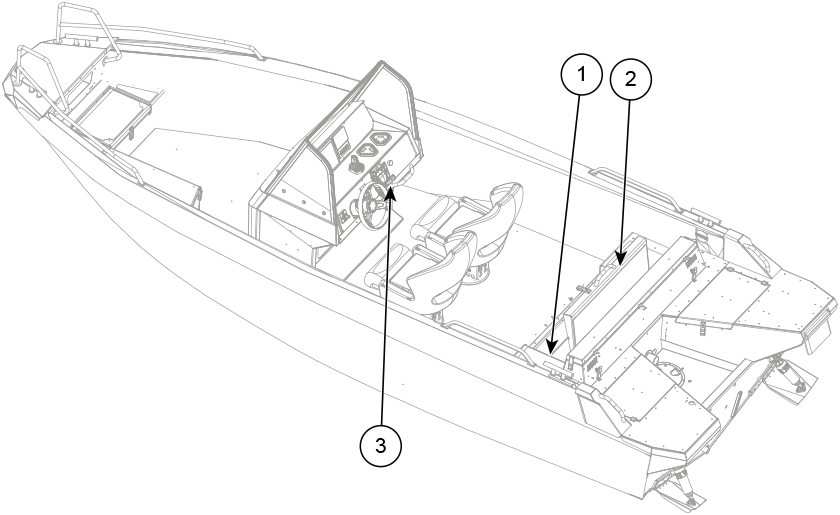

Figure 2. Buster XLcc/XXLcc fuse panel locations

1	Main switch and fuse panel	3	Additional fuse panel
2	Service battery main switch
