4.3.2 Measurements for antifouling paint area
The measurements indicate the upper limit of the antifouling paint, not the true waterline of the boat.

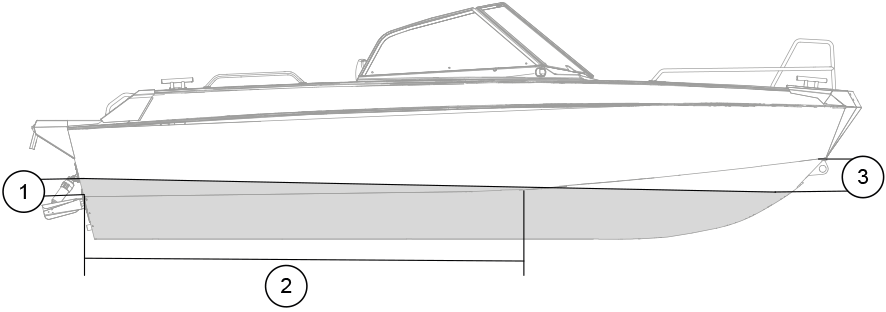

Figure 1. Buster XL/XLcc/XXL/XXLcc antifouling paint
area
| Position | Description | XL/XLcc | XXL/XXLcc | Unit |
|---|---|---|---|---|
| 1 | At stern: directly up from chine | 60 (2.4”) | 80 (3.1”) | mm (in) |
| 2 | In chine line: from stern | 1850 (71.8”) | 1800 (70.9”) | mm (in) |
| 3 | At bow: down from chine along the bow | 600 (23.6”) | 700 (27.6”) | mm (in) |
