3.3.1 Safety label descriptions and locations
|
Location |
Safety label |
Description |
|---|---|---|
|
1 |
|
Location of fire extinguisher. |
|
2 |
|
Fuel inlet. |
|
3 |
|
Always attach the emergency switch cord when driving the boat. |
|
4 |
|
Close the windshield door when travelling at a speed of more than 5 knots. |

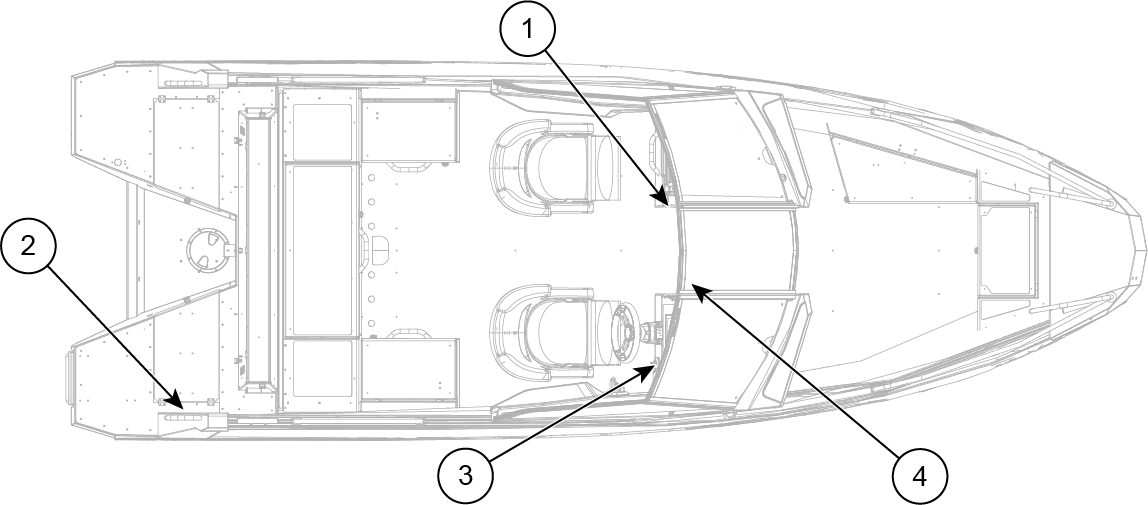

Figure 1. Buster XL/XXL safety
labels

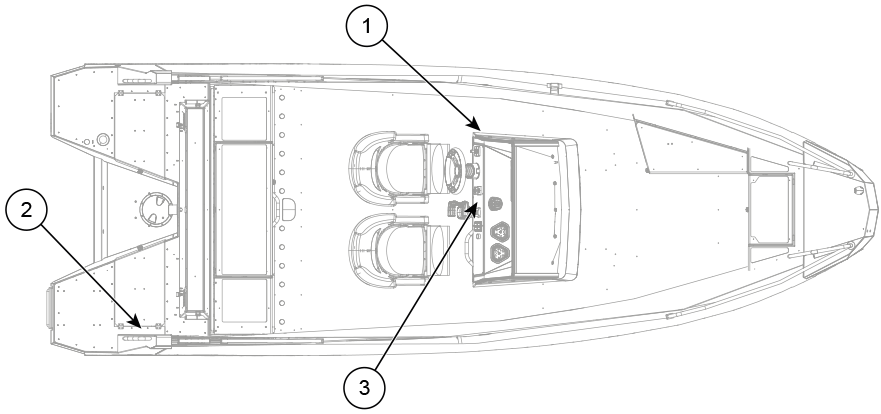

Figure 2. Buster XLcc/XXLcc safety
labels
Label number 4 is not applicable in Buster XLcc/XXLcc.
