9.5.1 Locations of electrical equipment

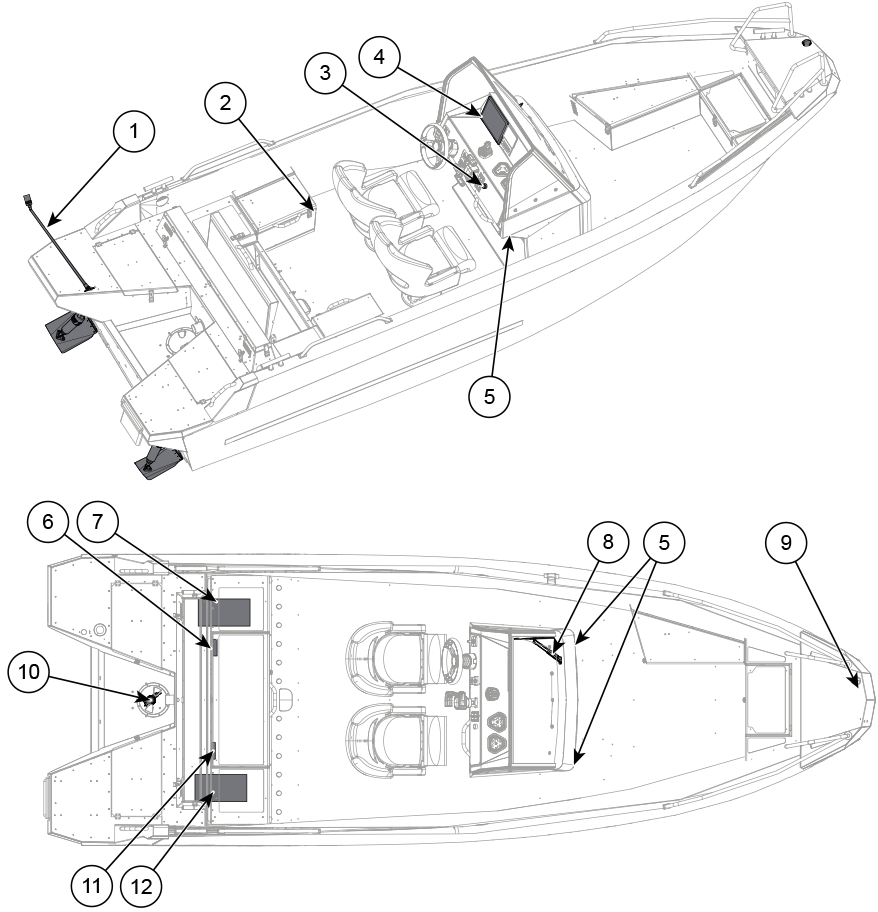

Figure 1. Buster XL/XXL electrical equipment
1 | Light mast | 7 | Main power switch and fuse panel |
2 | Fridge | 8 | Main battery |
3 | Deck lights* | 9 | Bilge pump |
4 | USB socket | 10 | Service battery main switch |
5 | Buster Q | 11 | Service battery |
6 | Navigation light | 12 | Windshield wiper |
*Only available for Buster XXL.

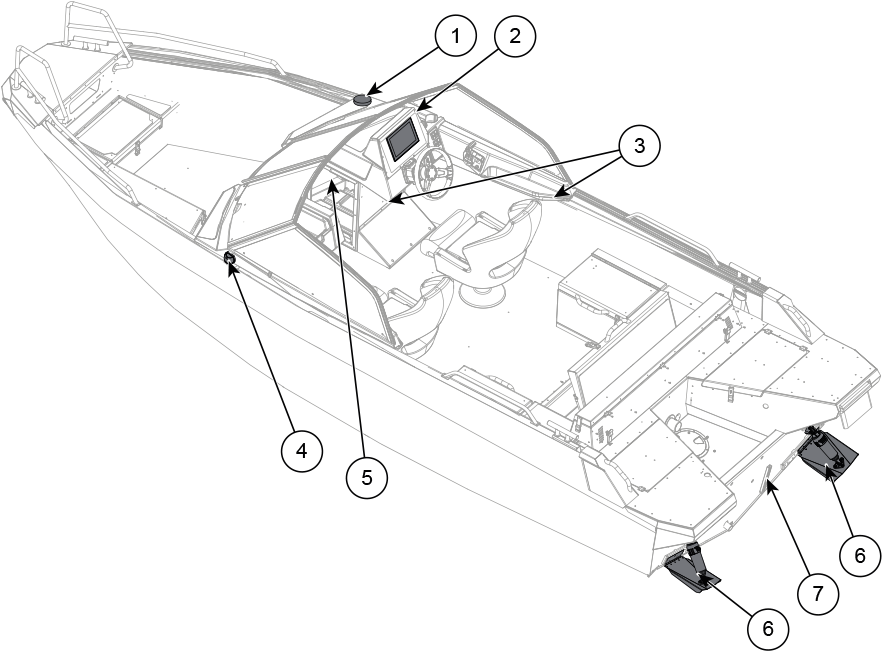

Figure 2. Buster XL/XXL electrical
equipment
1 |
GPS antenna | 5 | Additional fuse panel |
2 |
12 V outlet | 6 | Trim tabs |
3 |
Deck lights* | 7 | Fishfinder |
4 |
Navigation light |
*Only available for Buster XXL.

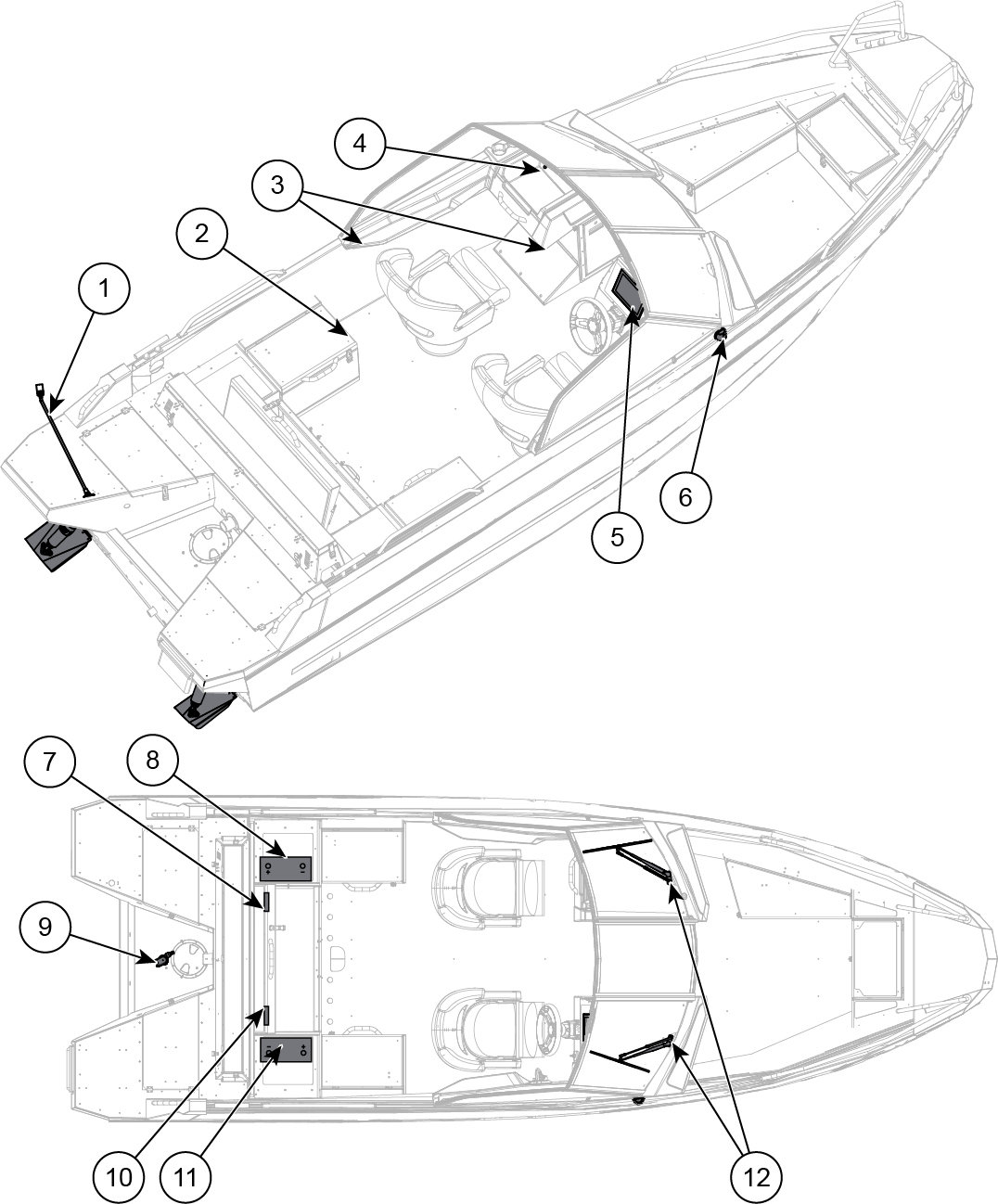

Figure 3. Buster XLcc/XXLcc electrical equipment
1 |
Light mast | 7 | Main battery |
2 |
Fridge | 8 | Windshield wiper |
3 |
USB socket | 9 | Navigation lights |
4 |
Buster Q | 10 | Bilge pump |
5 |
Deck lights* | 11 | Service battery main switch |
6 |
Main power switch and fuse panel | 12 | Service battery |
*Only available for Buster XXLcc.

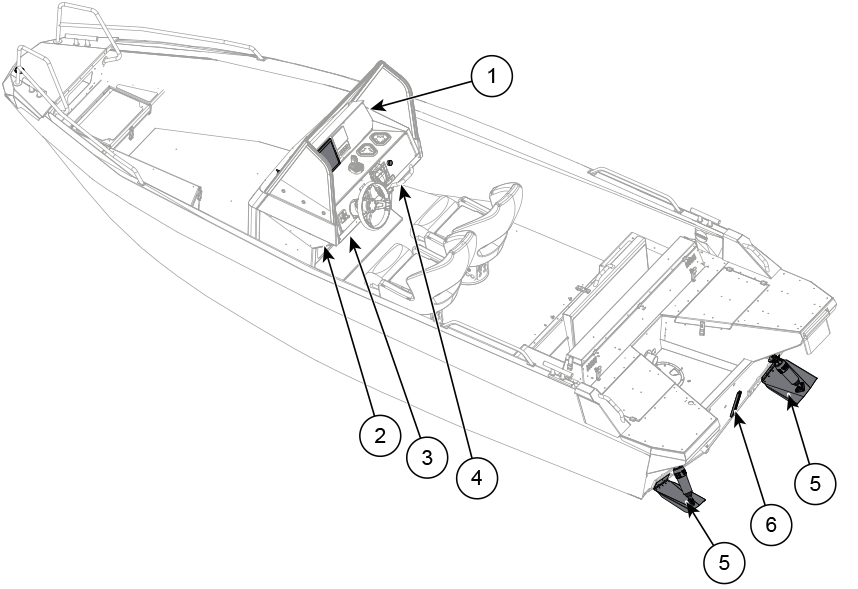

Figure 4. Buster XLcc/XXLcc electrical equipment
1 |
GPS antenna | 4 | Additional fuse panel |
2 |
Deck light* | 5 | Trim tabs |
3 |
12 V outlet | 6 | Fishfinder |
*Only available for Buster XXLcc.
