6.1.1 Control device locations

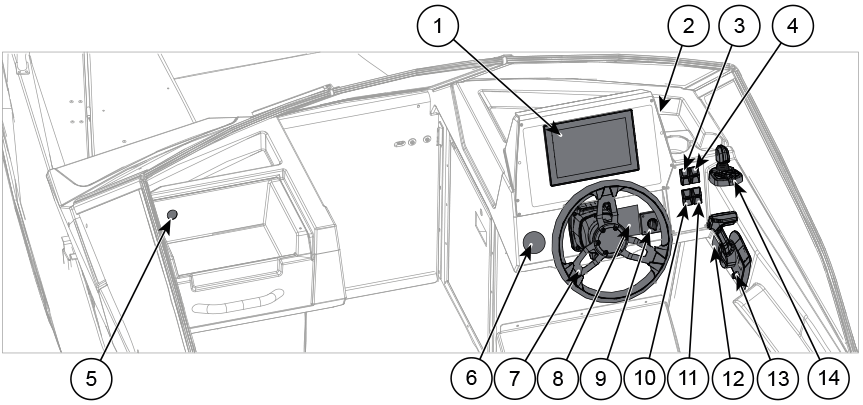

Figure 1. Buster XL/XXL helm station controls
1 | Buster Q | 8 | CL-5 touch screen* |
2 | 12 V outlet | 9 | Power and start switch |
3 | Windshield wiper switch | 10 | Bilge pump switch |
4 | Navigation lights switch | 11 | Deck lights switch* |
5 | USB socket | 12 | Autopilot control panel* |
6 | Trim tabs control joystick | 13 | Remote control and emergency cut-off switch |
7 | Steering wheel | 14 | Joystick* |
*Only available for Buster XXL

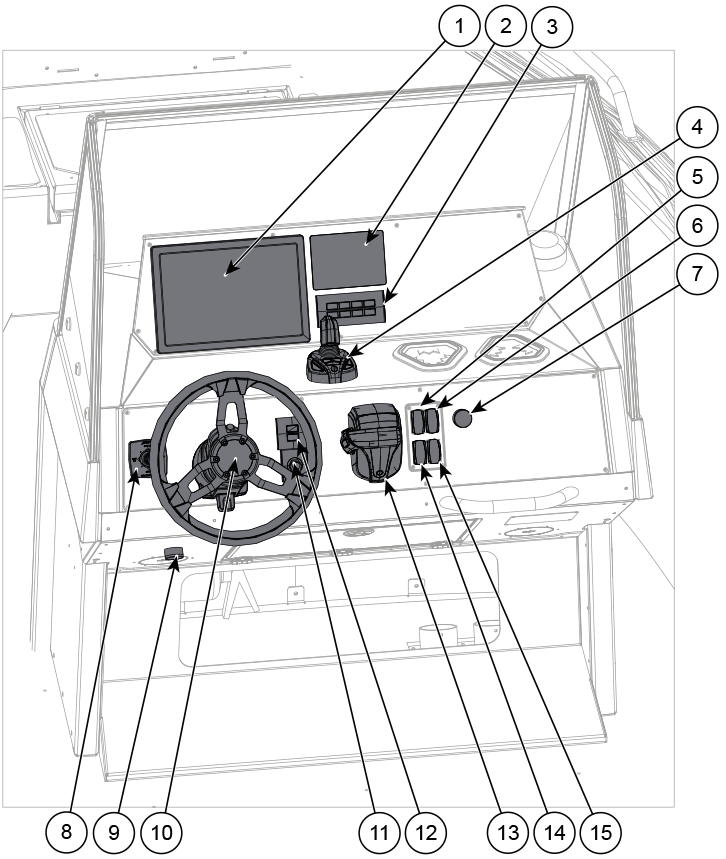

Figure 2. Buster XLcc/XXLcc helm station
controls
1 |
Buster Q | 9 | 12 V outlet |
2 |
CL-5 touch screen* | 10 | Steering wheel |
3 |
Autopilot control panel* | 11 | Emergency cut-off switch |
4 |
Joystick* | 12 | Power and start buttons |
5 |
Windshield wiper switch | 13 | Remote control |
6 |
Navigation lights switch | 14 | Bilge pump switch |
7 |
USB socket | 15 | Deck lights switch* |
8 |
Trim tabs control joystick |
*Only available for Buster XXLcc
