9.4.1 Locations of electrical equipment

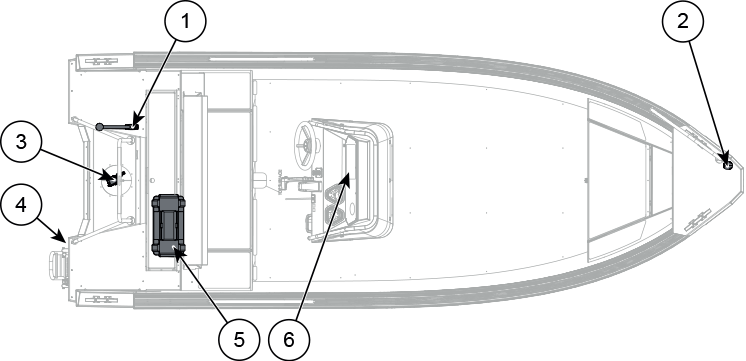

Figure 1. Buster M1/M2 electrical
equipment
1 |
Light mast | 4 | Fishfinder |
2 |
Navigation lights | 5 | Battery, fuse panel and main switch |
3 |
Bilge pump | 6 | Buster Q (optional feature) |

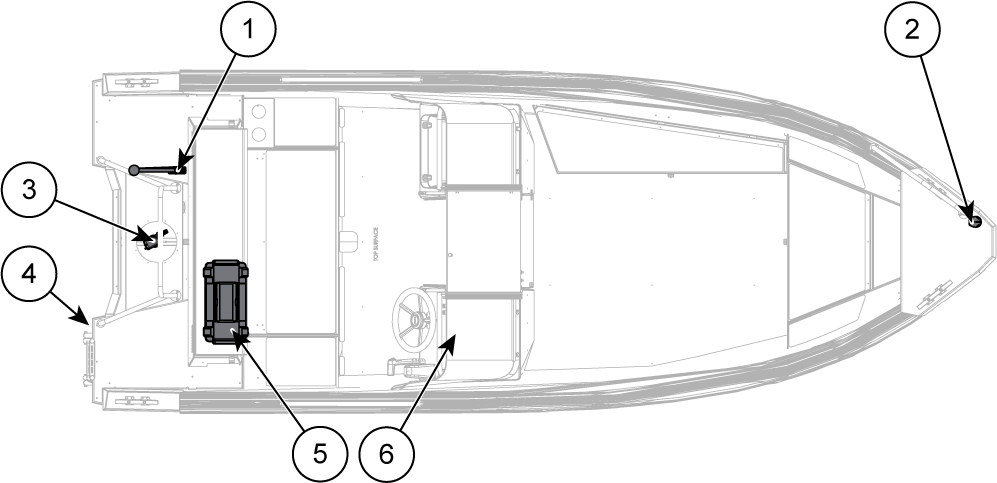

Figure 2. Buster Mcc electrical
equipment
1 |
Light mast | 4 | Fishfinder |
2 |
Navigation lights | 5 | Battery, fuse panel and main switch |
3 |
Bilge pump | 6 | Buster Q (optional feature) |
