6.1.1 Control device locations
Figure 1. Buster M1/M2 helm station controls
1 | Tachometer | 5 | Remote control |
2 | 12 V outlet | 6 | Steering wheel |
3 | Navigation lights switch | 7 | Power and start switch and emergency cut-off switch |
4 | Bilge pump switch |
Figure 2. Buster M1/M2 helm station controls with Buster Q
1 | Buster Q | 5 | Remote control |
2 | 12 V outlet | 6 | Steering wheel |
3 | Navigation lights switch | 7 | Power and start switch and emergency cut-off switch |
4 | Bilge pump switch |

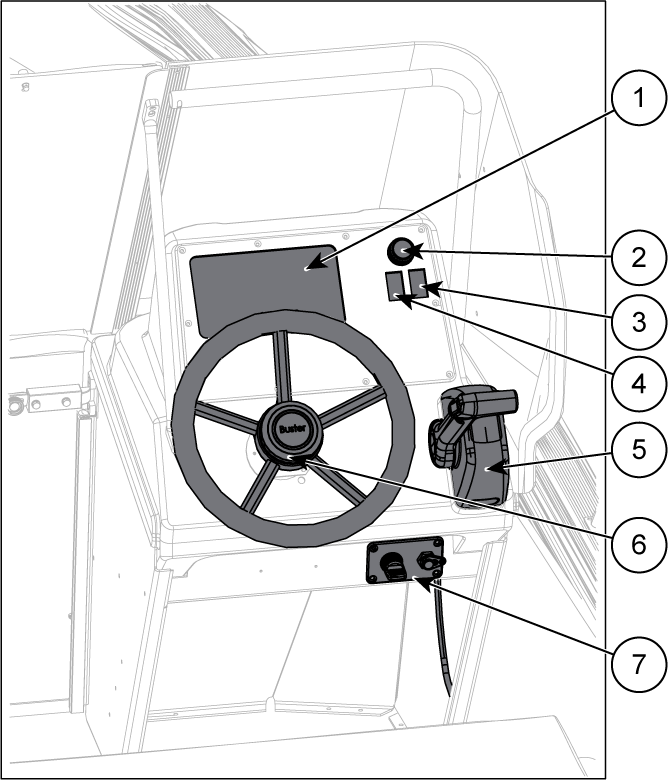

Figure 3. Buster Mcc helm station
controls
1 |
Steering wheel | 5 | Bilge pump switch |
2 |
12 V outlet | 6 | Navigation lights switch |
3 |
Power and start switch and emergency cut-off switch | 7 | Tachometer |
4 |
Remote control |
Figure 4. Buster Mcc helm station
controls with Buster Q
1 |
Steering wheel | 5 | Bilge pump switch |
2 |
12 V outlet | 6 | Navigation lights switch |
3 |
Power and start switch and emergency cut-off switch | 7 | Buster Q |
4 |
Remote control |
