4.3.2 Measurements for antifouling paint area
The measurements indicate the upper limit of the antifouling paint, not the true waterline of the boat.

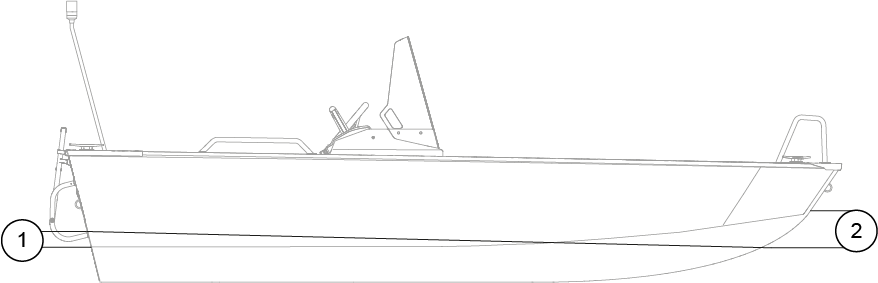

Figure 1. Buster XSr Torqeedo antifouling paint area
| Position | Description | mm (in) |
|---|---|---|
| 1 | At stern: directly up from chine | 70 mm (2,8") |
| 2 | At bow: down from chine along the bow | 533 mm (21") |
