6.1.1 Control device locations

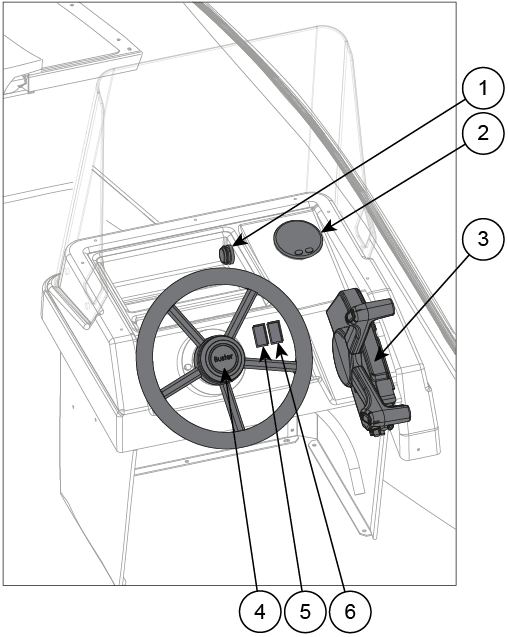

Figure 1. Buster XSr helm station
controls
1 |
12 V outlet | 4 | Steering wheel |
2 |
Tachometer | 5 | Navigation lights switch |
3 |
Remote control, power and start switch, and emergency cut-off switch | 6 | Bilge pump switch |
