6.1.1 Control device locations

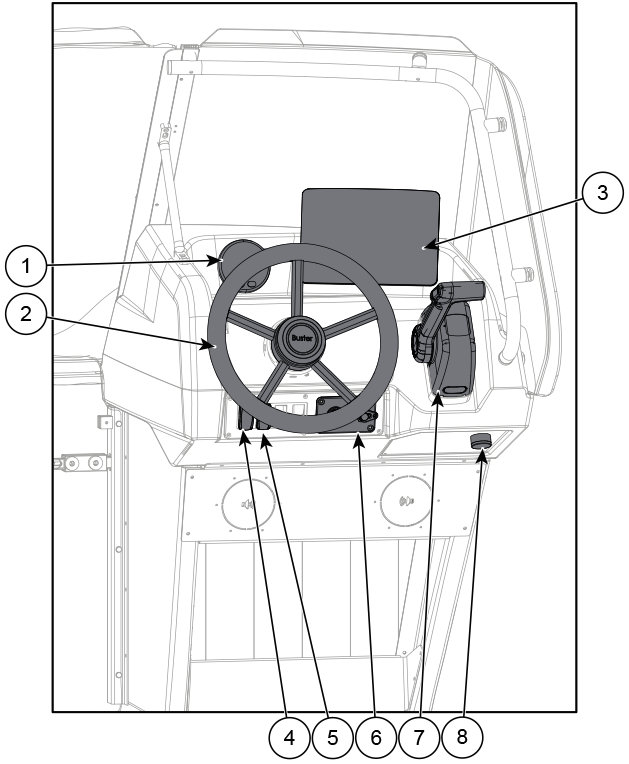

Figure 1. Buster Lx helm station controls
1 | Tachometer * | 5 | Bilge pump switch |
2 |
Steering wheel | 6 | Power and start switch and emergency cut-off switch |
3 |
Buster Q | 7 | Remote control |
4 |
Navigation lights switch | 8 | USB socket |
* Only available if the boat is not equipped with Buster Q
